KC Coupling Sprocket 10020
Categories | Coupling Sprockets |
---|---|
Model | KC-10020 |
Catalog | KC Coupling |
PartNumber | KC-10020 |
Material | Steel C45 |
Pitch | 31.75mm |
Chain No. | ASA 100B |
Teeth | 20 |
TeethHardness | 45±3Hrc |
Terms of Payment | L/C, D/P, Western Union |
Update Time | Oct 16,2024 |
Detail Information
KC Catalog Coupling Sprocket 10020
KC Catalog Chain&Sprocket Coupling

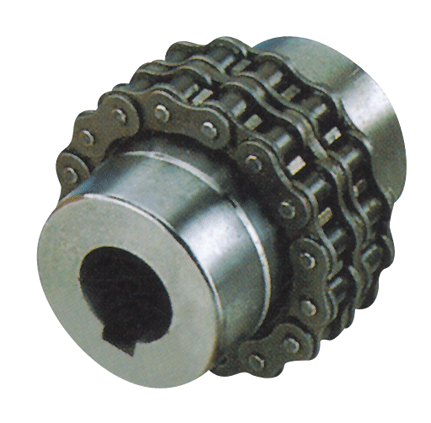

Chain coupling is composed by a duplex roller chain and two sprockets. The function of connection and detachment is done by the joint of chain. it has the characteristic of simplicity, high efficiency, easy-on and easy-offand nice out-look.
It also has a aluminium cover to prevent dust and prevent the lubricant and make the life of chain coupling longer life.
KC Coupling wide using in powder transmission equipment, such as pumps, gear boxes, mixiers, conveyors and some other industrial machines.
Zhijiang factory is offering all series couplings sprockets, chains and coupling cases, you can order sprockets, chains or case from us, or order whole sets of couplings assemble with 2pcs sprockets, one chain within couplings case.
Product Details
Part Number | Bore Range | Pilot | A | D | O | L | I | S |
B |
C |
Weight(Kg) |
KC-4012 | 12-22 | 12 | 77.0 | 33.0 | 62.0 | 79.4 | 36.0 | 7.4 | 72.0 | 14.4 | 0.80 |
KC-4014 | 12-28 | 12 | 84 | 43 | 69 | 79.4 | 36.0 | 7.4 | 75 | 14.4 | 1.1 |
KC-4016 | 14-32 | 14 | 92 | 48 | 77 | 87.4 | 40.0 | 7.4 | 75 | 14.4 | 1.4 |
KC-5014 | 15-35 | 14 | 101 | 53 | 86 | 99.7 | 45.0 | 9.7 | 85 | 18.1 | 2.2 |
KC-5016 | 16-40 | 16 | 111 | 60 | 93 | 99.7 | 45.0 | 9.7 | 85 | 18.1 | 2.7 |
KC-5018 | 16-45 | 16 | 122 | 70 | 106 | 99.7 | 45.0 | 9.7 | 85 | 18.1 | 3.8 |
KC-6018 | 20-56 | 20 | 142 | 85 | 127 | 123.5 | 56.0 | 11.5 | 105 | 22.8 | 6.2 |
KC-6020 | 20-60 | 20 | 158 | 98 | 139 | 123.5 | 56.0 | 11.5 |
105 |
22.8 |
7.8 |
KC-6022 | 20-71 | 20 | 168 | 110 | 151 | 123.5 | 56.0 | 11.5 |
117 |
22.8 |
10.4 |
KC-8018 | 20-80 | 20 | 190 | 110 | 169 | 141.2 | 63.0 | 15.2 |
129 |
29.3 |
12.7 |
KC-8020 | 20-90 | 20 | 210 | 121 | 185 | 145.2 | 65.0 | 15.2 | 137 | 29.3 | 16.0 |
KC-8022 | 20-100 | 20 | 226 | 140 | 202 | 157.2 | 71.0 | 15.2 | 137 | 29.3 | 202 |
KC-10020 | 25-110 | 25 | 281 | 160 | 233 | 178.8 | 80.0 | 18.8 | 153 | 35.8 | 33.0 |
KC-12018 | 35-125 | 35 | 307 | 170 | 256 | 202.7 | 90.0 | 22.7 | 181 | 45.4 | 47.0 |
KC-12022 | 35-140 | 35 | 357 | 210 | 304 | 222.7 | 100.0 | 22.7 | 181 | 45.4 | 72.0 |
KC-16018 | 63-160 | 53 | 375 | 228 | 340 | 254.1 | 112.0 | 30.1 | 240 | 58.5 | 108.0 |
KC-16022 | 80-200 | 70 | 440 | 279 | 405 | 310.1 | 140.0 | 30.1 | 245 | 58.5 | 187.0 |
